>> THE R-CORE FOR R-CORE TRANSFORMER Specification

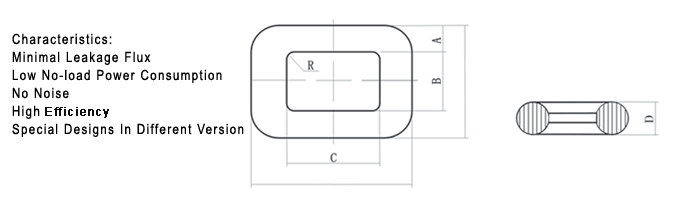

THE R-CORE FOR R-CORE TRANSFORMER
NO.
Model
A
B
C
D
E(MAX)
F(MAX)
R
1
R-5
12.0
12.0
34.5
13.0
36.5
60.0
0.5
2
R-8
13.5
15.0
38.9
15.0
43.0
69.0
0.5
3
R-10
14.6
16.0
41.9
16.0
47.2
74.2
0.5
4
R-20
16.4
18.3
43.5
18.0
53.1
79.4
0.5
5
R-26
17.5
17.0
45.0
19.5
54.0
81.1
0.5
6
R-30
18.2
19.5
55.5
20.0
57.9
95.0
0.5
7
R-35
18.3
20.9
56.5
20.0
60.6
96.3
0.6
8
R-40
19.2
21.9
54.2
21.3
62.6
96.1
0.6
9
R-50
20.2
21.5
53.5
22.5
64.2
97.4
0.6
10
R-55
21.0
21.5
53.5
23.0
65.5
97.5
0.6
11
R-80
21.3
24.5
75.0
23.6
69.5
121.4
0.8
12
R-100
23.8
27.5
72.0
26.6
77.5
123.4
0.8
13
R-160
24.9
30.3
82.0
27.4
82.6
135.7
1.3
14
R-260
27.2
31.8
90.0
30.0
89.0
148.7
1.3
15
R-320
28.8
36.5
97.0
31.8
96.9
158.9
1.3
16
R-600
34.4
36.5
103.0
38.0
108.4
176.6
1.3
17
R-1000
40.6
46.0
127.0
45.0
130.9
213.5
1.3
