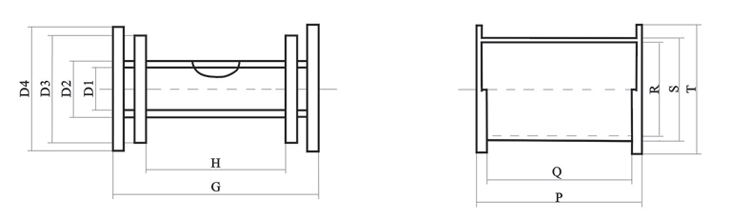

PBT BOBBIN FOR R-CORE TRANSFORMER
Series
H
G
D1
D2
D3
D4
P
Q
R
S
T
R-5
26.5
32.3
14.5
16.5
20
22
R-8
29.3
37
16
18.5
22
28.5
32.7
28
22
24
28
R-10
29.9
38.5
17
19.5
23
30.5
33.8
30
23
25
30
R-20
31.5
40.2
19
21.5
25.8
33.5
35.5
32.1
26
28
33.5
R-25
33.8
42
20.5
22.5
26.5
34
37.4
34
27
29
34
R-30
42
52
21
23.5
28
36
46.4
42
28.5
30.5
36
R-35
43.5
52.5
21.5
24.5
29.5
38.5
47.4
43.5
30
32
38.5
R-40
41
51
23
25.5
30
39.5
45.1
41
31
33
39.5
R-50
39.6
50
24
26.5
31.7
41
43.8
40
32.2
34.6
41
R-65
44.5
54.3
24
26.5
33
43
48.6
44
32.6
35
43
R-80
58.5
71
25
28
34
43
62.8
59.5
35.6
38
44
R-100
58
68
28
30.5
38
49.5
62.2
56.5
39.1
41.5
49.5
R-160
67
77.8
29.5
32
40
52.5
71.8
66.5
40.7
43.5
51.5
R-260
80
89
31
34.5
44
56.5
83.8
75.5
44.2
47
56.5
R-320
83
94.5
34
37
46
61
87.2
77.5
47.2
50
60
R-600
92
101.5
39
43
52
67.5
94.8
85.5
53.2
56
67
R-1000
112
125.5
47.5
51.5
64.5
84
116.2
107
62.5
65.3
84
